Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Width88mm
Depth128.5mm
Height166mm
Number of indicator lights0
Overload release current setting- - -A
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Number of command positions2
Supporting protocol for LONNo
Number of auxiliary contacts as normally closed contact0
Suitable for emergency stopNo
Number of auxiliary contacts as normally open contact0
Supporting protocol for ASINo
Rated operation power at AC-3, 400 V5.5kW
Rated operation current Ie12A
With transformerNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at AC 60HZ380 - 380V
Rail mounting possibleNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusNo
Rated control supply voltage Us at DC- - -V
Supporting protocol for SUCONETNo
External reset possibleYes
Rated control supply voltage Us at AC 50HZ380 - 380V
Type of electrical connection for auxiliary- and control current circuitScrew connection
With short-circuit releaseNo
Type of electrical connection of main circuitScrew connection
Supporting protocol for DeviceNet SafetyNo
With fuseNo
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP65
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPNo
Rated operation current at AC-3, 400 V12A
Rated operation power at AC-3, 230 V, 3-phase3kW
Type of motor starterDirect online starter (DOL)
Ambient temperature, upper operating limit40°C
Temperature compensated overload protectionNo
Rated power, 575 V, 60 Hz, 3-phase7.5kW
Rated conditional short-circuit current, type 2, 400 V-A
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Supporting protocol for SafetyBUS pNo
Voltage type for actuatingAC
Supporting protocol for PROFIsafeNo
Rated conditional short-circuit current, type 1, 480 Y/277 V-A
Rated conditional short-circuit current, type 2, 230 V-A
Rated conditional short-circuit current, type 1, 600 Y/347 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

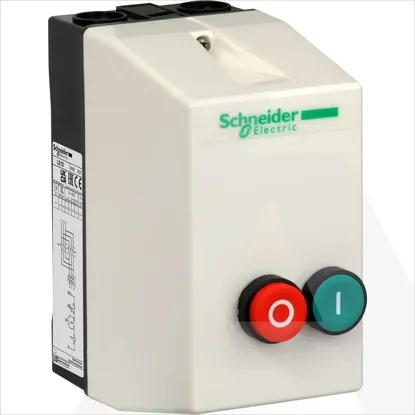

LE1D12Q7 | Pokretac Motorski 12A 380V 50/60HZ
