Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth108mm
Rated operation power at AC-3, 400 V0.37kW
Width78mm
With transformerNo
Height160mm
Suitable for emergency stopNo
Number of indicator lights0
Number of command positions1
Supporting protocol for TCP/IPNo
Overload release current setting0.8 - 1.2A
Number of auxiliary contacts as normally closed contact0
Supporting protocol for LONNo
Number of auxiliary contacts as normally open contact0
Rated operation current Ie1.2A
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for CANNo
Supporting protocol for SERCOSNo
Rated control supply voltage Us at AC 50HZ380 - 380V
Rated control supply voltage Us at AC 60HZ380 - 380V
Rail mounting possibleNo
Supporting protocol for SUCONETNo
Rated control supply voltage Us at DC- - -V
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP65
External reset possibleNo
Supporting protocol for AS-Interface Safety at WorkNo
Type of electrical connection of main circuitScrew connection
With fuseNo
Supporting protocol for Foundation FieldbusNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for EtherNet/IPNo
Supporting protocol for DeviceNet SafetyNo
With short-circuit releaseNo
Supporting protocol for INTERBUS-SafetyNo
Release classCLASS 10 A
Supporting protocol for PROFINET IONo
Type of motor starterDirect online starter (DOL)
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Voltage type for actuatingAC
Supporting protocol for SafetyBUS pNo
Rated power, 460 V, 60 Hz, 3-phase0.37kW
Ambient temperature, upper operating limit40°C
Rated operation power at AC-3, 230 V, 3-phase0.18kW
Rated power, 575 V, 60 Hz, 3-phase0.37kW
Rated operation current at AC-3, 400 V1.2A
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 2, 230 V-A
Rated conditional short-circuit current, type 2, 400 V-A
Rated conditional short-circuit current, type 1, 480 Y/277 V-A
Rated conditional short-circuit current, type 1, 600 Y/347 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

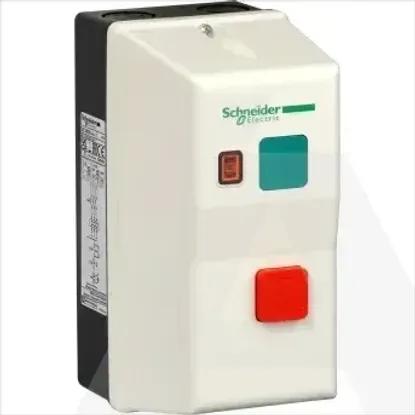

LE1M35Q706 | Pokretac Motorski 35A
