Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated operation power at AC-3, 400 V5.5kW
Number of command positions3
Number of auxiliary contacts as normally open contact1
Depth126mm
Width45mm
With transformerNo
Height224mm
Overload release current setting- - -A
Number of indicator lights0
Supporting protocol for DeviceNetNo
Supporting protocol for CANNo
Supporting protocol for LONNo
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusNo
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie12A
Supporting protocol for TCP/IPNo
Supporting protocol for Data-HighwayNo
Suitable for emergency stopNo
Supporting protocol for ASINo
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Rated control supply voltage Us at DC- - -V
Supporting protocol for INTERBUS-SafetyNo
Rated control supply voltage Us at AC 50HZ24 - 24V
Supporting protocol for SERCOSNo
External reset possibleNo
Rated control supply voltage Us at AC 60HZ24 - 24V
Degree of protection (IP)IP20
Supporting protocol for other bus systemsNo
With short-circuit releaseYes
Type of electrical connection of main circuitScrew connection
With fuseNo
Supporting protocol for EtherNet/IPNo
Voltage type for actuatingAC
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Type of motor starterReversing starter
Rated power, 575 V, 60 Hz, 3-phase5.5kW
Rated operation power at AC-3, 230 V, 3-phase3kW
Rated conditional short-circuit current, type 2, 400 V50000A
Rated conditional short-circuit current, type 2, 230 V50000A
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
Rated operation current at AC-3, 400 V12A
Coordination class according to IEC 60947-4-3Class 2
Ambient temperature, upper operating limit70°C
Temperature compensated overload protectionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

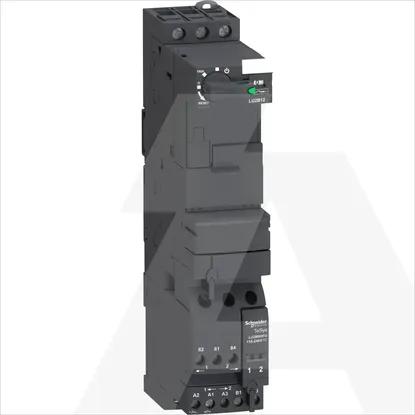

LU2B12B | Baza 2 Smjera 12A 24V AC
