Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Height224mm
Depth126mm
With transformerNo
Width45mm
Number of indicator lights0
Suitable for emergency stopNo
Number of auxiliary contacts as normally open contact1
Number of command positions3
Number of auxiliary contacts as normally closed contact1
Supporting protocol for SUCONETNo
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for ModbusNo
Rail mounting possibleYes
Supporting protocol for DeviceNetNo
External reset possibleNo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSNo
Supporting protocol for LONNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
With short-circuit releaseYes
Supporting protocol for AS-Interface Safety at WorkNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Rated control supply voltage Us at AC 50HZ48 - 48V
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Rated control supply voltage Us at AC 60HZ48 - 48V
Type of electrical connection of main circuitScrew connection
With fuseNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Voltage type for actuatingAC/DC
Rated power, 575 V, 60 Hz, 3-phase5.5kW
Rated operation power at AC-3, 230 V, 3-phase3kW
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Rated conditional short-circuit current, type 2, 230 V50000A
Coordination class according to IEC 60947-4-3Class 2
Temperature compensated overload protectionYes
Ambient temperature, upper operating limit70°C
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
Rated conditional short-circuit current, type 2, 400 V50000A
Rated operation power at AC-3, 400 V5.5kW
Rated operation current Ie12A
Overload release current setting- - -A
Degree of protection (IP)IP20
Rated control supply voltage Us at DC48 - 72V
Type of motor starterReversing starter
Rated operation current at AC-3, 400 V12A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

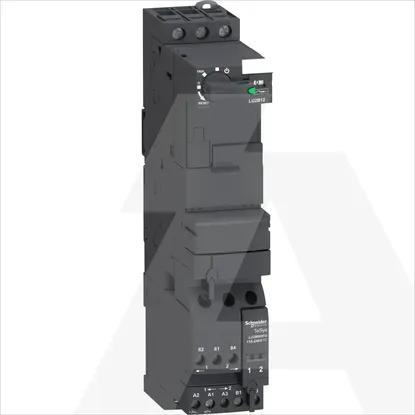

LU2B12ES | Baza 2 Smjera 12A 48-72V Ac/dc
