Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Height224mm
Width45mm
Overload release current setting- - -A
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V15kW
Number of command positions3
Number of auxiliary contacts as normally open contact1
Number of indicator lights0
Rated operation current Ie32A
Suitable for emergency stopNo
With transformerNo
Depth126mm
Supporting protocol for LONNo
Supporting protocol for CANNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for other bus systemsNo
With short-circuit releaseYes
Supporting protocol for TCP/IPNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
With fuseNo
Supporting protocol for ASINo
Degree of protection (IP)IP20
Rated control supply voltage Us at AC 50HZ24 - 24V
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SERCOSNo
Supporting protocol for DeviceNetNo
Rated control supply voltage Us at DC- - -V
External reset possibleNo
Rail mounting possibleYes
Supporting protocol for INTERBUS-SafetyNo
Rated control supply voltage Us at AC 60HZ24 - 24V
Supporting protocol for PROFIBUSNo
Supporting protocol for SUCONETNo
Type of electrical connection of main circuitScrew connection
Supporting protocol for PROFIsafeNo
Rated power, 460 V, 60 Hz, 3-phase15kW
Temperature compensated overload protectionYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Rated conditional short-circuit current, type 2, 230 V50000A
Supporting protocol for PROFINET CBANo
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Type of motor starterReversing starter
Ambient temperature, upper operating limit70°C
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
Rated conditional short-circuit current, type 2, 400 V50000A
Voltage type for actuatingAC
Rated power, 575 V, 60 Hz, 3-phase15kW
Coordination class according to IEC 60947-4-3Class 2
Supporting protocol for EtherNet/IPNo
Rated operation power at AC-3, 230 V, 3-phase7.5kW
Supporting protocol for PROFINET IONo
Rated operation current at AC-3, 400 V32A
Supporting protocol for DeviceNet SafetyNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

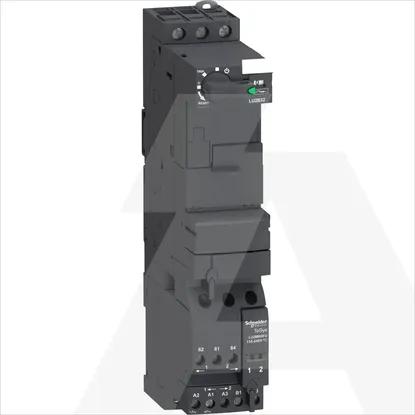

LU2B32B | Baza 2 Smjera 32A 24V AC
