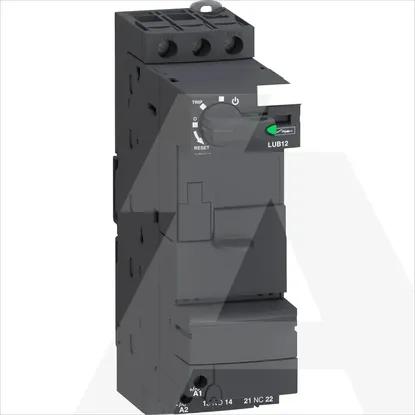

Details
- •Low-voltage switchgear and control gear (automation)
- •Motor starter/motor starter combination
- •Minimum order quantity: 1 pcs
- •SCHNEIDER
Technical specifications
Height154mm
Depth126mm
With transformerNo
Width45mm
Number of command positions3
Suitable for emergency stopNo
Number of indicator lights0
Supporting protocol for CANNo
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
External reset possibleNo
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at AC 50HZ24 - 240V
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
With fuseNo
Type of electrical connection of main circuitScrew connection
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for SERCOSNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Voltage type for actuatingAC/DC
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for AS-Interface Safety at WorkNo
Temperature compensated overload protectionYes
Coordination class according to IEC 60947-4-3Class 2
Rated power, 575 V, 60 Hz, 3-phase5.5kW
Rated operation power at AC-3, 230 V, 3-phase5.5kW
Rated conditional short-circuit current, type 1, 600 Y/347 V12A
Rated conditional short-circuit current, type 1, 480 Y/277 V12A
Rated conditional short-circuit current, type 2, 400 V12A
Rated conditional short-circuit current, type 2, 230 V12A
Ambient temperature, upper operating limit25°C
With short-circuit releaseYes
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Rail mounting possibleYes
Rated operation current Ie12A
Overload release current setting- - -A
Rated operation power at AC-3, 400 V5.5kW
Rated control supply voltage Us at DC24 - 220V
Type of motor starterDirect online starter (DOL)
Rated operation current at AC-3, 400 V12A
