Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Height154mm
Depth126mm
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of command positions3
Width45mm
With transformerNo
Rated operation power at AC-3, 400 V5.5kW
Rated operation current Ie12A
Overload release current setting- - -A
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Suitable for emergency stopNo
Supporting protocol for LONNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Supporting protocol for SUCONETNo
Supporting protocol for ASINo
Supporting protocol for other bus systemsNo
Supporting protocol for DeviceNetNo
Rail mounting possibleYes
External reset possibleNo
Number of indicator lights0
Rated control supply voltage Us at AC 60HZ24 - 240V
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Rated control supply voltage Us at DC24 - 220V
With short-circuit releaseYes
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC/DC
Rated power, 575 V, 60 Hz, 3-phase5.5kW
With fuseNo
Type of motor starterDirect online starter (DOL)
Supporting protocol for PROFINET CBANo
Ambient temperature, upper operating limit70°C
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for DeviceNet SafetyNo
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Rated operation current at AC-3, 400 V12A
Rated operation power at AC-3, 230 V, 3-phase3kW
Supporting protocol for PROFINET IONo
Supporting protocol for SafetyBUS pNo
Rated conditional short-circuit current, type 2, 400 V50000A
Coordination class according to IEC 60947-4-3Class 2
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
Rated conditional short-circuit current, type 2, 230 V50000A
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Temperature compensated overload protectionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

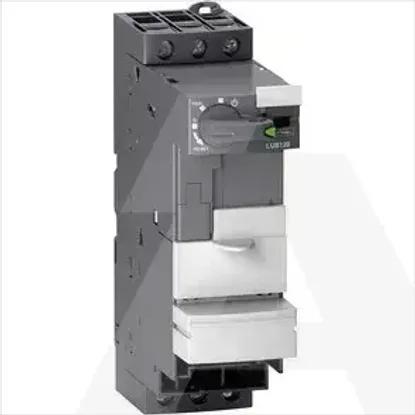

LUB120 | Tesys u Baza 12 a
