Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth126mm
Rated operation power at AC-3, 400 V15kW
Number of command positions3
Number of auxiliary contacts as normally open contact1
Width45mm
Suitable for emergency stopNo
With transformerNo
Height154mm
Number of auxiliary contacts as normally closed contact1
Supporting protocol for LONNo
Overload release current setting- - -A
Number of indicator lights0
Rated operation current Ie32A
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at DC24 - 220V
External reset possibleNo
With short-circuit releaseYes
Supporting protocol for INTERBUS-SafetyNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Rail mounting possibleYes
Supporting protocol for SERCOSNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Degree of protection (IP)IP20
Supporting protocol for AS-Interface Safety at WorkNo
Type of electrical connection of main circuitScrew connection
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
With fuseNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for SafetyBUS pNo
Type of motor starterDirect online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase7.5kW
Rated power, 460 V, 60 Hz, 3-phase15kW
Voltage type for actuatingAC/DC
Rated power, 575 V, 60 Hz, 3-phase15kW
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Rated conditional short-circuit current, type 2, 400 V50000A
Rated operation current at AC-3, 400 V32A
Ambient temperature, upper operating limit70°C
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 2, 230 V50000A
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
Coordination class according to IEC 60947-4-3Class 2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

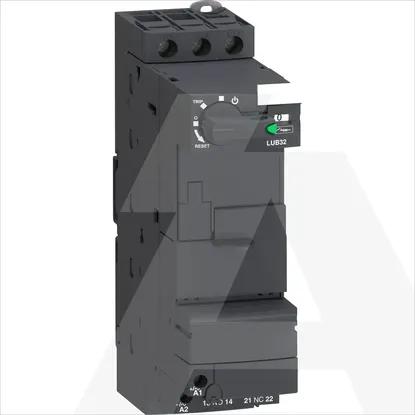

LUB32 | Baza 32 a
