Technical specifications
Supporting protocol for TCP/IPNo
With transformerNo
Suitable for emergency stopNo
Width45mm
Supporting protocol for LONNo
Depth126mm
Rated operation power at AC-3, 400 V15kW
Number of auxiliary contacts as normally open contact1
Overload release current setting- - -A
Number of command positions3
Number of indicator lights0
Rated operation current Ie32A
Height154mm
Number of auxiliary contacts as normally closed contact1
Supporting protocol for Data-HighwayNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for PROFIBUSNo
External reset possibleNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at DC24 - 220V
Rated control supply voltage Us at AC 50HZ24 - 240V
Degree of protection (IP)IP20
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
With fuseNo
With short-circuit releaseYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Rail mounting possibleYes
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Coordination class according to IEC 60947-4-3Class 2
Temperature compensated overload protectionYes
Rated operation power at AC-3, 230 V, 3-phase7.5kW
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Rated conditional short-circuit current, type 2, 400 V50000A
Rated operation current at AC-3, 400 V32A
Rated power, 460 V, 60 Hz, 3-phase15kW
Rated power, 575 V, 60 Hz, 3-phase15kW
Rated conditional short-circuit current, type 2, 230 V50000A
Ambient temperature, upper operating limit70°C
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Type of motor starterDirect online starter (DOL)
Supporting protocol for SafetyBUS pNo
Voltage type for actuatingAC/DC
Rated conditional short-circuit current, type 1, 600 Y/347 V4000A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

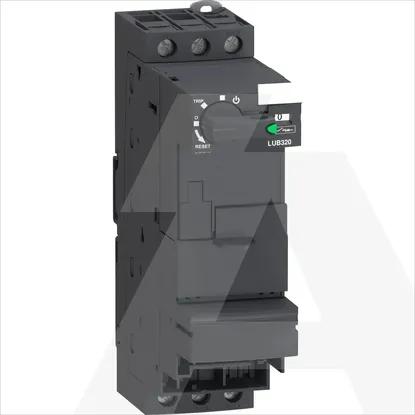

LUB320 | Baza 32A
