Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of command positions0
Rated operation power at AC-3, 400 V7.5kW
With transformerNo
Width45mm
Suitable for emergency stopNo
Number of auxiliary contacts as normally open contact0
Height66mm
Depth60mm
Rated operation current Ie4.5A
Supporting protocol for INTERBUSNo
Overload release current setting4.5 - 18A
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for LONNo
Number of indicator lights0
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusNo
Rated control supply voltage Us at AC 50HZ110 - 240V
Supporting protocol for SERCOSNo
With short-circuit releaseYes
Release classCLASS 10
Type of electrical connection for auxiliary- and control current circuitScrew connection
Rail mounting possibleYes
External reset possibleNo
Degree of protection (IP)IP40
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUS-SafetyNo
With fuseNo
Rated control supply voltage Us at AC 60HZ110 - 240V
Rated control supply voltage Us at DC110 - 220V
Type of electrical connection of main circuitScrew connection
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Rated power, 575 V, 60 Hz, 3-phase15kW
Voltage type for actuatingAC/DC
Type of motor starterOther
Rated conditional short-circuit current, type 2, 400 V18A
Rated power, 460 V, 60 Hz, 3-phase9kW
Rated operation current at AC-3, 400 V18A
Rated conditional short-circuit current, type 2, 230 V4.5A
Rated operation power at AC-3, 230 V, 3-phase7.5kW
Temperature compensated overload protectionYes
Coordination class according to IEC 60947-4-3Class 2
Ambient temperature, upper operating limit70°C
Rated conditional short-circuit current, type 1, 600 Y/347 V18A
Rated conditional short-circuit current, type 1, 480 Y/277 V4.5A
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

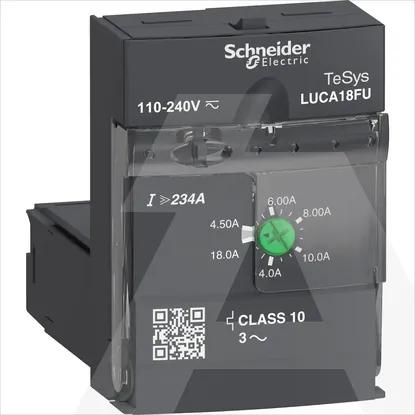

LUCA18FU | Modul Stand. 4,5-18A 110-240V
