Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth60mm
Width45mm
Height66mm
With transformerNo
Number of auxiliary contacts as normally closed contact0
Suitable for emergency stopNo
Number of command positions0
Number of auxiliary contacts as normally open contact0
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsNo
Supporting protocol for DeviceNetNo
Rated control supply voltage Us at AC 60HZ110 - 240V
Supporting protocol for PROFIBUSNo
Supporting protocol for LONNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Release classCLASS 10
Rated control supply voltage Us at AC 50HZ110 - 240V
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
With short-circuit releaseYes
Supporting protocol for ModbusNo
External reset possibleNo
Supporting protocol for ASINo
With fuseNo
Supporting protocol for INTERBUSNo
Number of indicator lights0
Type of electrical connection of main circuitScrew connection
Supporting protocol for DeviceNet SafetyNo
Rated conditional short-circuit current, type 1, 600 Y/347 V0.6A
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Ambient temperature, upper operating limit70°C
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 1, 480 Y/277 V0.15A
Supporting protocol for EtherNet/IPNo
Rated conditional short-circuit current, type 2, 400 V0.6A
Supporting protocol for PROFINET IONo
Rated power, 460 V, 60 Hz, 3-phase-kW
Supporting protocol for PROFINET CBANo
Rated operation power at AC-3, 230 V, 3-phase-kW
Rated conditional short-circuit current, type 2, 230 V0.15A
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Voltage type for actuatingAC/DC
Coordination class according to IEC 60947-4-3Class 2
Temperature compensated overload protectionYes
Rated operation power at AC-3, 400 V0.09kW
Rated operation current Ie0.15A
Overload release current setting0.15 - 0.6A
Degree of protection (IP)IP40
Rated control supply voltage Us at DC110 - 220V
Type of motor starterOther
Rated operation current at AC-3, 400 V0.6A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

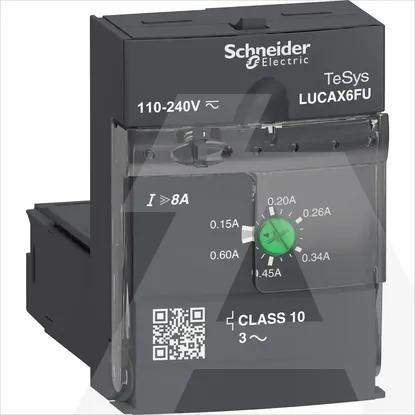

LUCAX6FU | Modul Stand. 0,15-0,6A110-240V
