Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Width45mm
With transformerNo
Number of auxiliary contacts as normally open contact0
Depth60mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0.09kW
Height66mm
Number of command positions0
Supporting protocol for ASINo
Suitable for emergency stopNo
Supporting protocol for PROFIBUSNo
External reset possibleNo
Overload release current setting0.15 - 0.6A
Supporting protocol for LONNo
Rated control supply voltage Us at AC 50HZ110 - 240V
Rated operation current Ie0.15A
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for ModbusNo
Supporting protocol for other bus systemsNo
Number of indicator lights0
Rated control supply voltage Us at AC 60HZ110 - 240V
With short-circuit releaseYes
Rated control supply voltage Us at DC110 - 220V
Supporting protocol for SERCOSNo
Release classCLASS 10
Degree of protection (IP)IP40
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for PROFINET IONo
Type of electrical connection of main circuitScrew connection
Coordination class according to IEC 60947-4-3Class 2
Voltage type for actuatingAC/DC
Rated operation power at AC-3, 230 V, 3-phase-kW
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Rated conditional short-circuit current, type 1, 600 Y/347 V0.6A
Supporting protocol for DeviceNet SafetyNo
Rated conditional short-circuit current, type 2, 400 V0.6A
Rated operation current at AC-3, 400 V0.6A
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 2, 230 V0.15A
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated power, 460 V, 60 Hz, 3-phase-kW
Ambient temperature, upper operating limit70°C
Rated conditional short-circuit current, type 1, 480 Y/277 V0.15A
Supporting protocol for SafetyBUS pNo
With fuseNo
Type of motor starterOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

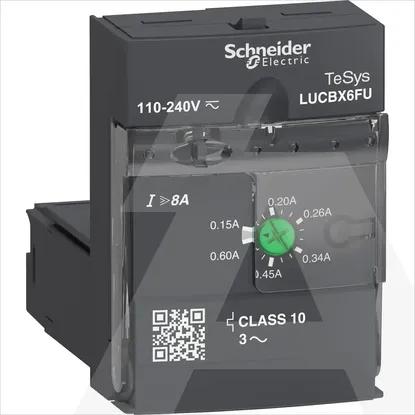

LUCBX6FU | Modul Proš KL. 10 3P 0,15-0,6A110-240V
