Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Width45mm
Height66mm
Number of auxiliary contacts as normally closed contact0
Overload release current setting3 - 12A
Rated operation power at AC-3, 400 V2.2kW
Number of auxiliary contacts as normally open contact0
Number of command positions0
Number of indicator lights0
Rated operation current Ie3A
With transformerNo
Suitable for emergency stopNo
Depth60mm
Supporting protocol for ASINo
Supporting protocol for LONNo
Supporting protocol for SUCONETNo
Rail mounting possibleYes
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Rated control supply voltage Us at DC24 - 24V
External reset possibleNo
Supporting protocol for CANNo
Rated control supply voltage Us at AC 60HZ- - -V
Rated control supply voltage Us at AC 50HZ- - -V
Supporting protocol for ModbusNo
Degree of protection (IP)IP40
Release classCLASS 10
Supporting protocol for AS-Interface Safety at WorkNo
With short-circuit releaseYes
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
With fuseNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Voltage type for actuatingDC
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Rated conditional short-circuit current, type 2, 400 V12A
Temperature compensated overload protectionYes
Rated operation power at AC-3, 230 V, 3-phase-kW
Ambient temperature, upper operating limit70°C
Coordination class according to IEC 60947-4-3Class 2
Supporting protocol for Foundation FieldbusNo
Type of motor starterOther
Rated conditional short-circuit current, type 2, 230 V3A
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated power, 460 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 1, 480 Y/277 V3A
Rated operation current at AC-3, 400 V12A
Rated conditional short-circuit current, type 1, 600 Y/347 V12A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

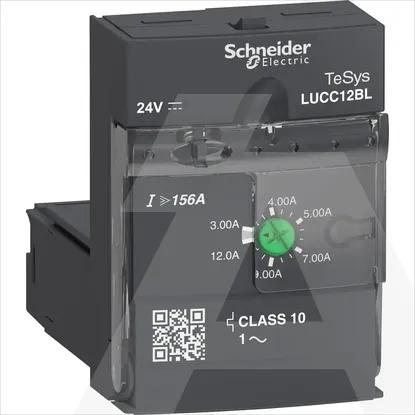

LUCC12BL | Modul Proš KL. 10 1P 3-12A 24VDC
