Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Width45mm
Number of indicator lights0
With transformerNo
Number of command positions0
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Height66mm
Suitable for emergency stopNo
Supporting protocol for DeviceNetNo
Supporting protocol for TCP/IPNo
Number of auxiliary contacts as normally closed contact0
Supporting protocol for ModbusNo
Supporting protocol for CANNo
Depth60mm
Supporting protocol for LONNo
Supporting protocol for ASINo
Number of auxiliary contacts as normally open contact0
Rated operation current Ie3A
Overload release current setting3 - 12A
Rated operation power at AC-3, 400 V2.2kW
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at AC 60HZ110 - 240V
Supporting protocol for SERCOSNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for INTERBUS-SafetyNo
Type of motor starterOther
Supporting protocol for DeviceNet SafetyNo
Rated control supply voltage Us at AC 50HZ110 - 240V
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
With short-circuit releaseYes
Voltage type for actuatingAC/DC
Rated control supply voltage Us at DC110 - 220V
Release classCLASS 10
External reset possibleNo
With fuseNo
Supporting protocol for PROFINET CBANo
Type of electrical connection of main circuitScrew connection
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Degree of protection (IP)IP40
Rail mounting possibleYes
Rated operation power at AC-3, 230 V, 3-phase-kW
Type of electrical connection for auxiliary- and control current circuitScrew connection
Coordination class according to IEC 60947-4-3Class 2
Rated operation current at AC-3, 400 V12A
Rated conditional short-circuit current, type 1, 600 Y/347 V12A
Rated conditional short-circuit current, type 1, 480 Y/277 V3A
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 2, 400 V12A
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 2, 230 V3A
Ambient temperature, upper operating limit70°C
Rated power, 460 V, 60 Hz, 3-phase-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

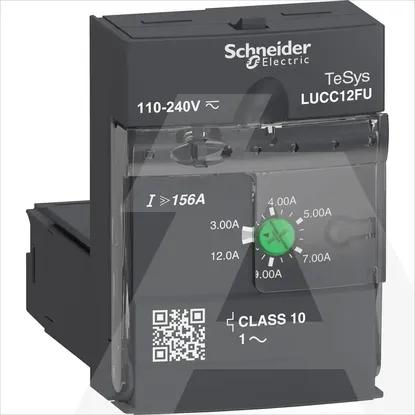

LUCC12FU | Modul Proš KL. 10 1P 3-12A 110-240V
