Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Width45mm
Number of auxiliary contacts as normally open contact0
Depth60mm
Rated operation power at AC-3, 400 V0.09kW
With transformerNo
Height66mm
Number of command positions0
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Number of auxiliary contacts as normally closed contact0
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Number of indicator lights0
Supporting protocol for ModbusNo
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUSNo
Overload release current setting0.15 - 0.6A
Supporting protocol for CANNo
Rated operation current Ie0.15A
Suitable for emergency stopNo
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Supporting protocol for SERCOSNo
Rated control supply voltage Us at AC 60HZ- - -V
Release classCLASS 10
With short-circuit releaseYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP)IP40
Supporting protocol for DeviceNet SafetyNo
With fuseNo
External reset possibleNo
Supporting protocol for INTERBUS-SafetyNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Rated control supply voltage Us at AC 50HZ- - -V
Supporting protocol for AS-Interface Safety at WorkNo
Rated control supply voltage Us at DC24 - 24V
Rail mounting possibleYes
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Voltage type for actuatingDC
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Type of motor starterOther
Supporting protocol for SafetyBUS pNo
Temperature compensated overload protectionYes
Rated operation current at AC-3, 400 V0.6A
Ambient temperature, upper operating limit70°C
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated operation power at AC-3, 230 V, 3-phase-kW
Rated conditional short-circuit current, type 1, 480 Y/277 V0.15A
Rated conditional short-circuit current, type 2, 230 V0.15A
Rated conditional short-circuit current, type 2, 400 V0.6A
Coordination class according to IEC 60947-4-3Class 2
Rated power, 460 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 1, 600 Y/347 V0.6A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

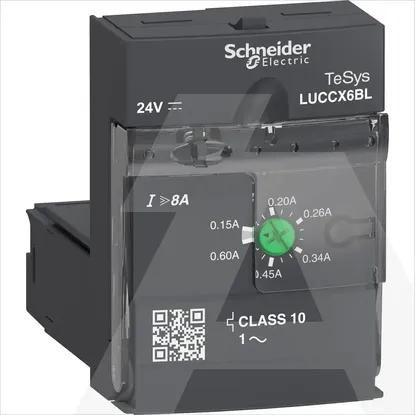

LUCCX6BL | Modul Proš KL. 10 1P 0,15-0,6A24VDC
