Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Connectable conductor cross section solid-core0.14 - 4mm²
Number of clamp positions per level1
ColourGrey
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Type of slittingSwivelling
Inflammability class of insulation material according to with UL94V0
Height36.5mm
Closing plate requiredYes
Width5.2mm
Internally connected stagesNo
Rated voltage400V
Operating temperature-40 - 130°C
Type of electrical connection 1Plug-in connection
Number of levels1
Type of electrical connection 2Plug-in connection
Mounting methodDIN rail (top hat rail) 35 mm
Type of cross disconnectionSwivelling
With integrated test socketNo
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 2.5mm²
Connectable conductor cross section multi-wired0.14 - 2.5mm²
Rated current In20A
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

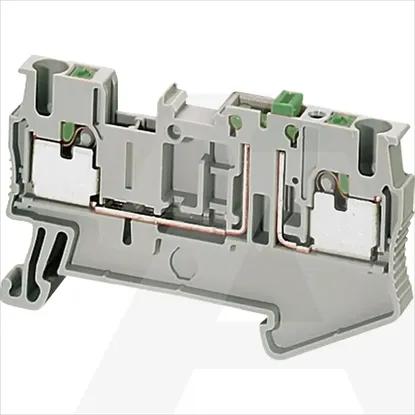

NSYTRP22SC | Stez. Push-in 2,5mm2 1P 1x1 Siva Disc.
