Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width5.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Depth60.5mm
ColourGrey
Height36.5mm
Closing plate requiredYes
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Rated voltage800V
Rated current In24A
Type of electrical connection 1Plug-in connection
Material insulation bodyThermoplastic
Type of electrical connection 2Plug-in connection
Number of levels1
Number of clamp positions per level3
Internally connected stagesNo
Connectable conductor cross section multi-wired0.14 - 2.5mm²
Connectable conductor cross section solid-core0.14 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

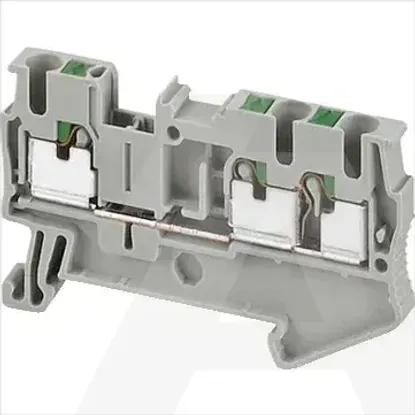

NSYTRP23 | Stez. Push-in 2,5mm2 1P 1x2 Siva
