Details

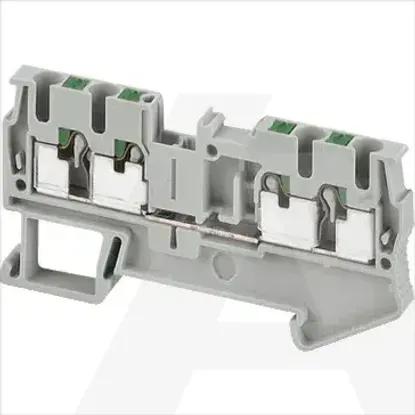

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Type of electrical connection 2Plug-in connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Number of clamp positions per level4
Closing plate requiredYes
Number of levels1
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Type of electrical connection 1Plug-in connection
Depth72mm
Operating temperature-40 - 130°C
Height36.5mm
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Mounting methodDIN rail (top hat rail) 35 mm
Width5.2mm
Connectable conductor cross section multi-wired0.14 - 2.5mm²
Explosion-tested version 'Ex e'Yes
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
