Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Depth72mm
Width5.2mm
Height36.5mm
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Number of clamp positions per level4
Number of levels1
Connectable conductor cross section multi-wired0.14 - 2.5mm²
Internally connected stagesNo
Type of electrical connection 1Plug-in connection
Operating temperature-40 - 130°C
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Type of electrical connection 2Plug-in connection
ColourBlue
Rated voltage800V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

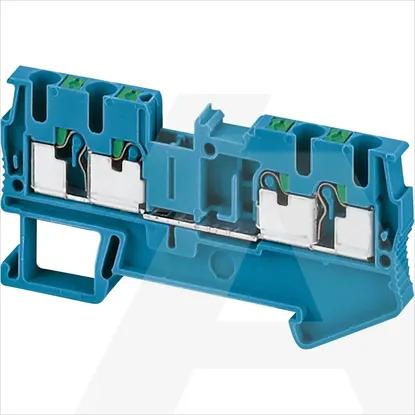

NSYTRP24BL | Stez. Push-in 2,5mm2 1P 2x2 Plava
