Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width6.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Height36.5mm
Internally connected stagesNo
Number of levels1
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 1Plug-in connection
Number of clamp positions per level2
Depth56mm
Closing plate requiredYes
Type of electrical connection 2Plug-in connection
Operating temperature-40 - 130°C
Connectable conductor cross section multi-wired0.2 - 4mm²
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Explosion-tested version 'Ex e'Yes
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.2 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

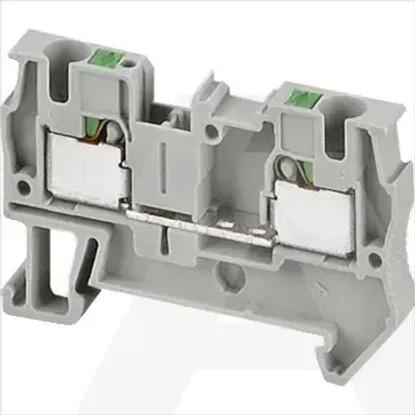

NSYTRP42 | Stez. Push-in 4mm2 1P 1x1 Siva
