Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourBlue
Mounting methodDIN rail (top hat rail) 35 mm
Closing plate requiredYes
Type of electrical connection 2Plug-in connection
Rated voltage800V
Depth56mm
Inflammability class of insulation material according to with UL94V0
Number of clamp positions per level2
Internally connected stagesNo
Type of electrical connection 1Plug-in connection
Operating temperature-40 - 130°C
Number of levels1
Width6.2mm
Height36.5mm
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Connectable conductor cross section solid-core0.2 - 6mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section multi-wired0.2 - 4mm²
Rated current In32A
Material insulation bodyThermoplastic
Explosion-tested version 'Ex e'Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

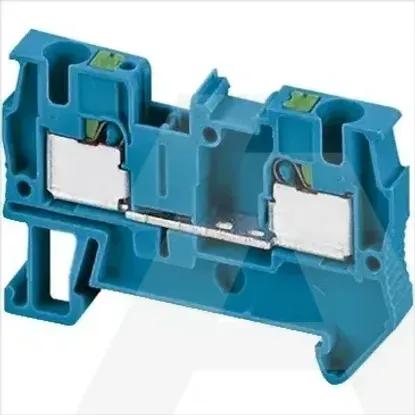

NSYTRP42BL | Stez. Push-in 4mm2 1P 1x1 Plava
