Details

  • •Terminal blocks

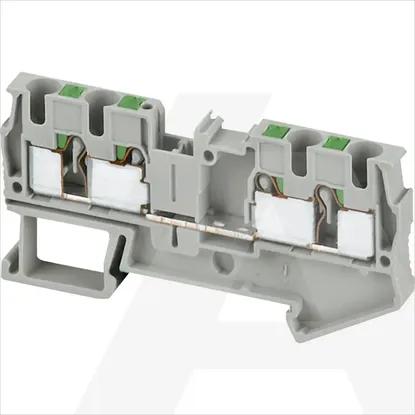

  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Mounting methodDIN rail (top hat rail) 35 mm
Depth77mm
Width6.2mm
Height36.5mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Number of levels1
Internally connected stagesNo
Closing plate requiredYes
Connectable conductor cross section multi-wired0.2 - 4mm²
Type of electrical connection 1Plug-in connection
Material insulation bodyThermoplastic
Type of electrical connection 2Plug-in connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Number of clamp positions per level4
Explosion-tested version 'Ex e'Yes
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.2 - 6mm²
Rated current In32A
