Details

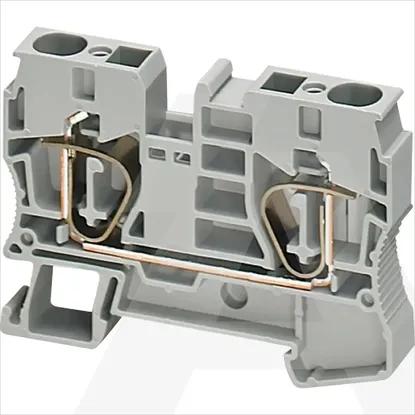

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Depth71.5mm
Width10.2mm
Height50.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Closing plate requiredYes
Type of electrical connection 2Spring clamp connection
Type of electrical connection 1Spring clamp connection
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Explosion-tested version 'Ex e'Yes
Number of levels1
Internally connected stagesNo
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 10mm²
Connectable conductor cross section multi-wired0.2 - 10mm²
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.2 - 16mm²
Rated current In57A
