Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Depth80mm
Mounting methodDIN rail (top hat rail) 35 mm
Height51mm
Rated voltage800V
ColourGrey
Width12.2mm
Type of electrical connection 2Spring clamp connection
Number of levels1
Closing plate requiredYes
Type of electrical connection 1Spring clamp connection
Connectable conductor cross section multi-wired0.2 - 16mm²
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 16mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 16mm²
Internally connected stagesNo
Material insulation bodyThermoplastic
Number of clamp positions per level2
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section solid-core0.2 - 25mm²
Rated current In76A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

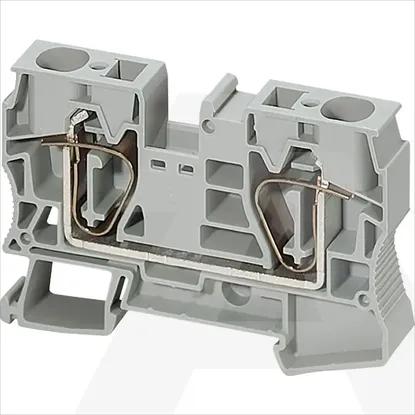

NSYTRR162 | Stez. Opružna 16mm2 1P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-40 .. 130°C
Depth
80mm
Mounting method
DIN rail (top hat rail) 35 mm
Height
51mm
Rated voltage
800V
Colour
Grey
Width
12.2mm
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Closing plate required
Type of electrical connection 1
Spring clamp connection
Connectable conductor cross section multi-wired
0.2 .. 16mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2 .. 16mm²
Connectable conductor cross section fine-strand with cable end sleeve
1.5 .. 16mm²
Internally connected stages
Material insulation body
Thermoplastic
Number of clamp positions per level
2
Explosion-tested version 'Ex e'
Connectable conductor cross section solid-core
0.2 .. 25mm²
Rated current In
76A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
