Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width5.2mm
Depth48.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Height36.5mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Type of electrical connection 1Spring clamp connection
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Internally connected stagesNo
Explosion-tested version 'Ex e'Yes
Type of electrical connection 2Spring clamp connection
Closing plate requiredYes
Connectable conductor cross section multi-wired0.08 - 2.5mm²
Number of clamp positions per level2
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
ColourBlue
Rated voltage800V
Connectable conductor cross section solid-core0.08 - 4mm²
Rated current In24A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

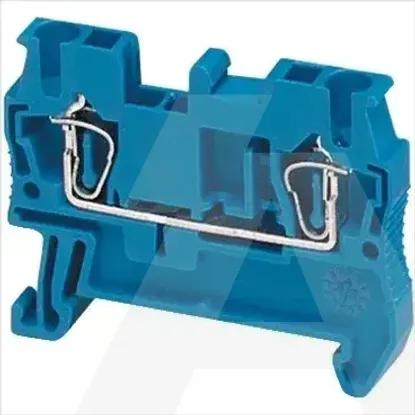

NSYTRR22BL | Stez. Opružna 2,5mm2 1P 1x1 Plava
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Width
5.2mm
Depth
48.5mm
Mounting method
DIN rail (top hat rail) 35 mm
Height
36.5mm
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-40 .. 130°C
Type of electrical connection 1
Spring clamp connection
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Internally connected stages
Explosion-tested version 'Ex e'
Type of electrical connection 2
Spring clamp connection
Closing plate required
Connectable conductor cross section multi-wired
0.08 .. 2.5mm²
Number of clamp positions per level
2
Number of levels
1
Connectable conductor cross section fine-strand without cable end sleeve
0.08 .. 2.5mm²
Colour
Blue
Rated voltage
800V
Connectable conductor cross section solid-core
0.08 .. 4mm²
Rated current In
24A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
