Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourGrey
Height36.5mm
Width5.2mm
Depth60.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage800V
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Closing plate requiredYes
Internally connected stagesNo
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Number of levels1
Type of electrical connection 2Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Number of clamp positions per level3
Connectable conductor cross section multi-wired0.08 - 2.5mm²
Material insulation bodyThermoplastic
Rated current In24A
Connectable conductor cross section solid-core0.08 - 4mm²
Type of electrical connection 1Spring clamp connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

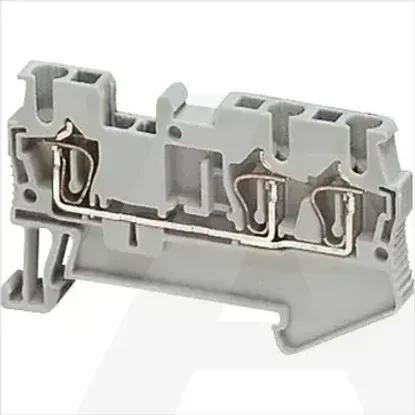

NSYTRR23 | Stez. Opružna 2,5mm2 1P 1x2 Siva
