Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Operating temperature-40 - 130°C
Width5.2mm
Height36.5mm
Depth72mm
Type of electrical connection 1Spring clamp connection
Number of clamp positions per level4
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 2Spring clamp connection
Number of levels1
Internally connected stagesNo
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.08 - 2.5mm²
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.08 - 4mm²
Rated current In24A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

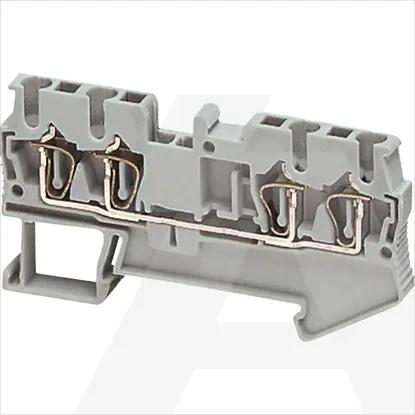

NSYTRR24 | Stez. Opružna 2,5mm2 1P 2x2 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
-40 .. 130°C
Width
5.2mm
Height
36.5mm
Depth
72mm
Type of electrical connection 1
Spring clamp connection
Number of clamp positions per level
4
Closing plate required
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Internally connected stages
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Material insulation body
Thermoplastic
Connectable conductor cross section multi-wired
0.08 .. 2.5mm²
Explosion-tested version 'Ex e'
Connectable conductor cross section fine-strand without cable end sleeve
0.08 .. 2.5mm²
Colour
Grey
Rated voltage
800V
Connectable conductor cross section solid-core
0.08 .. 4mm²
Rated current In
24A
