Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
ColourBlue
Height36.5mm
Depth72mm
Width5.2mm
Rated voltage800V
Operating temperature-40 - 130°C
Number of levels1
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Number of clamp positions per level4
Type of electrical connection 2Spring clamp connection
Connectable conductor cross section solid-core0.08 - 4mm²
Type of electrical connection 1Spring clamp connection
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Rated current In24A
Connectable conductor cross section multi-wired0.08 - 2.5mm²
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

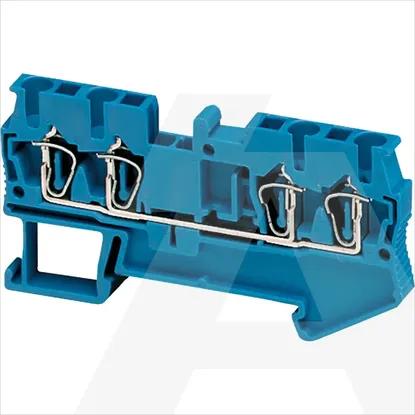

NSYTRR24BL | Stez. Opružna 2,5mm2 1P 2x2 Plava
