Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Width5.2mm
ColourGrey
Depth99.5mm
Operating temperature-40 - 130°C
Rated voltage500V
Closing plate requiredYes
Height58mm
Connectable conductor cross section solid-core0.08 - 4mm²
Number of levels3
Type of electrical connection 1Spring clamp connection
Internally connected stagesNo
Number of clamp positions per level2
Type of electrical connection 2Spring clamp connection
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 2.5mm²
Rated current In20A
Suitable for conductor materialAluminium/copper
Connectable conductor cross section multi-wired0.08 - 2.5mm²
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

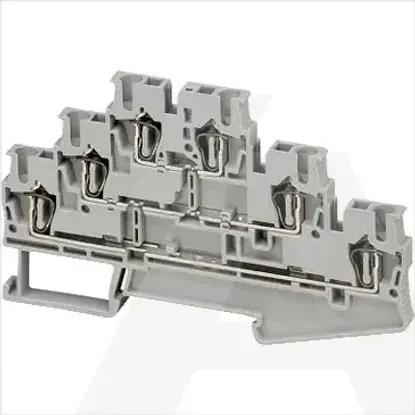

NSYTRR26T | Stez. Opružna 2,5mm2 3P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Width
5.2mm
Colour
Grey
Depth
99.5mm
Operating temperature
-40 .. 130°C
Rated voltage
500V
Closing plate required
Height
58mm
Connectable conductor cross section solid-core
0.08 .. 4mm²
Number of levels
3
Type of electrical connection 1
Spring clamp connection
Internally connected stages
Number of clamp positions per level
2
Type of electrical connection 2
Spring clamp connection
Explosion-tested version 'Ex e'
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 .. 2.5mm²
Rated current In
20A
Suitable for conductor material
Aluminium/copper
Connectable conductor cross section multi-wired
0.08 .. 2.5mm²
Material insulation body
Thermoplastic
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
