Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Height36.5mm
Type of electrical connection 2Spring clamp connection
Connectable conductor cross section multi-wired0.08 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Width6.2mm
Depth56mm
Material insulation bodyThermoplastic
Type of electrical connection 1Spring clamp connection
Closing plate requiredYes
Number of levels1
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Operating temperature-40 - 130°C
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Number of clamp positions per level2
Explosion-tested version 'Ex e'Yes
ColourBlue
Rated voltage800V
Connectable conductor cross section solid-core0.08 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

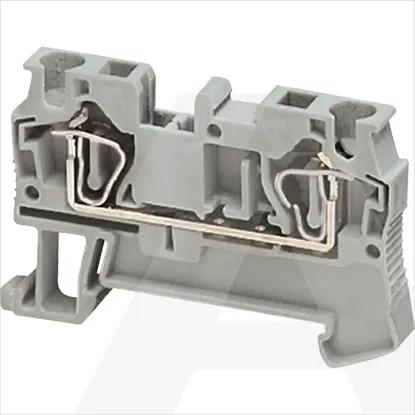

NSYTRR42BL | Stez. Opružna 4mm2 1P 1x1 Plava
