Details

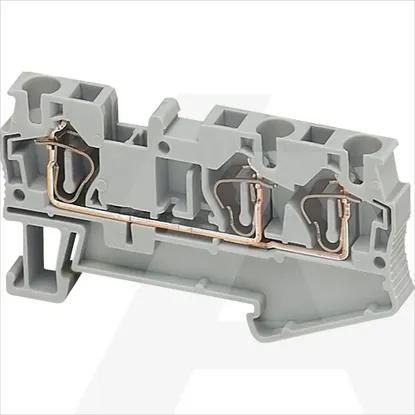

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Closing plate requiredYes
Mounting methodDIN rail (top hat rail) 35 mm
Width6.2mm
Height36.5mm
Number of clamp positions per level3
Internally connected stagesNo
Depth71.5mm
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 2Spring clamp connection
Operating temperature-40 - 130°C
Type of electrical connection 1Spring clamp connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Number of levels1
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.08 - 4mm²
Explosion-tested version 'Ex e'Yes
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.08 - 6mm²
Rated current In32A
