Details

  • •Terminal blocks

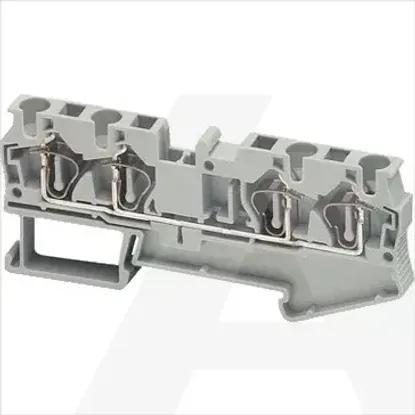

  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Mounting methodDIN rail (top hat rail) 35 mm
Closing plate requiredYes
Width6.2mm
Number of clamp positions per level4
Type of electrical connection 1Spring clamp connection
Height36.5mm
Inflammability class of insulation material according to with UL94V0
Number of levels1
Internally connected stagesNo
Depth87mm
Operating temperature-40 - 130°C
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section multi-wired0.08 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Material insulation bodyThermoplastic
Type of electrical connection 2Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.08 - 6mm²
Rated current In32A
