Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Rated voltage500V
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Width6.2mm
Height55mm
Closing plate requiredYes
Number of levels2
ColourGrey
Type of electrical connection 2Spring clamp connection
Depth92.4mm
Type of electrical connection 1Spring clamp connection
Explosion-tested version 'Ex e'Yes
Number of clamp positions per level2
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve0.08 - 4mm²
Connectable conductor cross section multi-wired0.08 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Connectable conductor cross section solid-core0.08 - 6mm²
Rated current In28A
Material insulation bodyThermoplastic
Suitable for conductor materialAluminium/copper
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

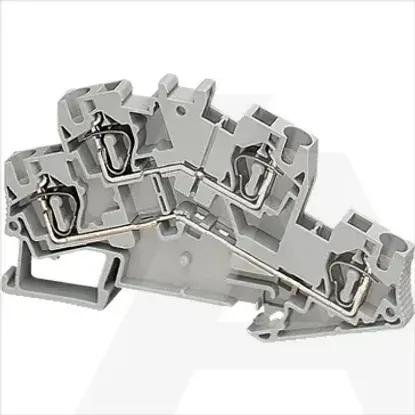

NSYTRR44D | Stez. Opružna 4mm2 2P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated voltage
500V
Mounting method
DIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-40 .. 130°C
Width
6.2mm
Height
55mm
Closing plate required
Number of levels
2
Colour
Grey
Type of electrical connection 2
Spring clamp connection
Depth
92.4mm
Type of electrical connection 1
Spring clamp connection
Explosion-tested version 'Ex e'
Number of clamp positions per level
2
Internally connected stages
Connectable conductor cross section fine-strand without cable end sleeve
0.08 .. 4mm²
Connectable conductor cross section multi-wired
0.08 .. 4mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 4mm²
Connectable conductor cross section solid-core
0.08 .. 6mm²
Rated current In
28A
Material insulation body
Thermoplastic
Suitable for conductor material
Aluminium/copper
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
