Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
ColourBlue
Height43.5mm
Connectable conductor cross section solid-core0.2 - 10mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 6mm²
Depth69.5mm
Operating temperature-40 - 130°C
Internally connected stagesNo
Rated current In41A
Inflammability class of insulation material according to with UL94V0
Width8.2mm
Closing plate requiredYes
Number of clamp positions per level2
Number of levels1
Explosion-tested version 'Ex e'Yes
Type of electrical connection 1Spring clamp connection
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.5 - 6mm²
Rated voltage800V
Type of electrical connection 2Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 6mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

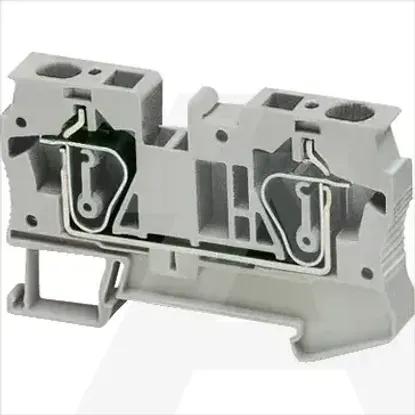

NSYTRR62BL | Stez. Opružna 6mm2 1P 1x1 Plava
