Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourGrey
Width8.2mm
Depth90.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Height43.5mm
Material insulation bodyThermoplastic
Type of electrical connection 2Spring clamp connection
Rated voltage800V
Type of electrical connection 1Spring clamp connection
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 6mm²
Operating temperature-40 - 130°C
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 6mm²
Number of clamp positions per level3
Rated current In41A
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section multi-wired0.5 - 6mm²
Closing plate requiredYes
Connectable conductor cross section solid-core0.2 - 10mm²
Inflammability class of insulation material according to with UL94V0
Number of levels1
Internally connected stagesNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

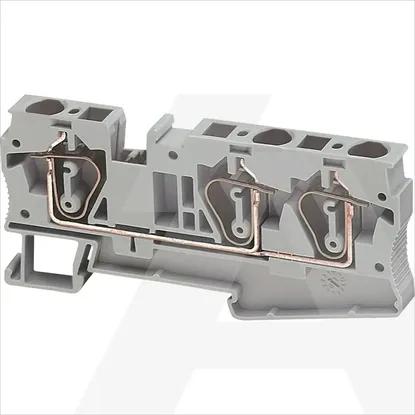

NSYTRR63 | Stez. Opružna 6mm2 1P 1x2 Siva
