Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width10.2mm
Height47.5mm
ColourGrey
Mounting methodDIN rail (top hat rail) 35 mm
Depth47.7mm
Rated voltage1000V
Material insulation bodyThermoplastic
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Number of clamp positions per level2
Operating temperature-40 - 130°C
Rated current In57A
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section solid-core0.5 - 16mm²
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Connectable conductor cross section multi-wired0.5 - 16mm²
Type of electrical connection 1Screw connection
Number of levels1
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 10mm²
Type of electrical connection 2Screw connection
Closing plate requiredYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

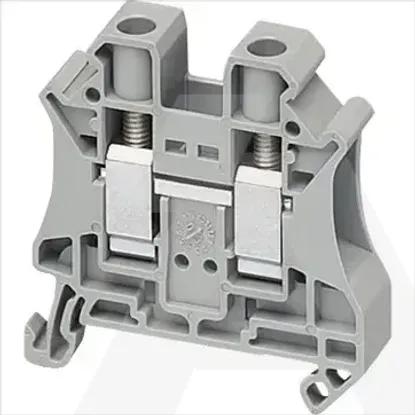

NSYTRV102 | Stez. Vijcana 10mm2 1P 1x1 Siva
