Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width10.2mm
ColourBlue
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 2Screw connection
Height47.5mm
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 1Screw connection
Closing plate requiredYes
Operating temperature-40 - 130°C
Number of levels1
Rated voltage1000V
Depth47.7mm
Number of clamp positions per level2
Connectable conductor cross section solid-core0.5 - 16mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 10mm²
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 10mm²
Connectable conductor cross section multi-wired0.5 - 16mm²
Explosion-tested version 'Ex e'Yes
Rated current In57A
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

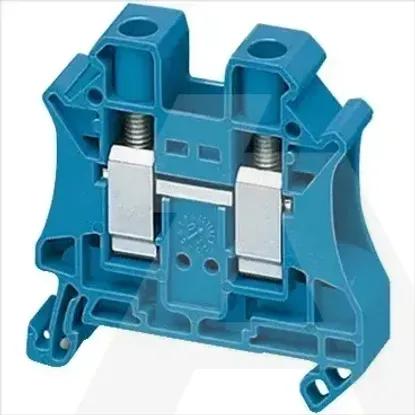

NSYTRV102BL | Stez. Vijcana 10mm2 1P 1x1 Plava
