Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Depth55.5mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Height55mm
Width12.2mm
Type of electrical connection 1Screw connection
Closing plate requiredYes
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 16mm²
Type of electrical connection 2Screw connection
Internally connected stagesNo
Connectable conductor cross section multi-wired1.5 - 25mm²
Explosion-tested version 'Ex e'Yes
Number of levels1
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 16mm²
ColourGrey
Rated voltage1000V
Connectable conductor cross section solid-core1.5 - 25mm²
Rated current In76A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

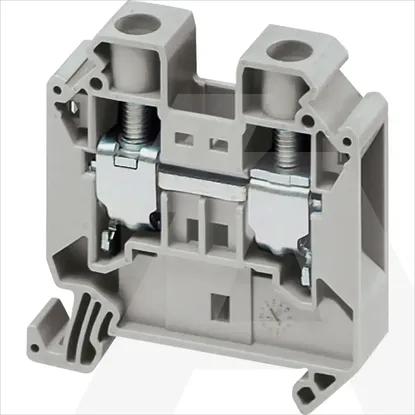

NSYTRV162 | Stez. Vijcana 16mm2 1P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Depth
55.5mm
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-40 .. 130°C
Height
55mm
Width
12.2mm
Type of electrical connection 1
Screw connection
Closing plate required
Number of clamp positions per level
2
Connectable conductor cross section fine-strand with cable end sleeve
1.5 .. 16mm²
Type of electrical connection 2
Screw connection
Internally connected stages
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Explosion-tested version 'Ex e'
Number of levels
1
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand without cable end sleeve
0.2 .. 16mm²
Colour
Grey
Rated voltage
1000V
Connectable conductor cross section solid-core
1.5 .. 25mm²
Rated current In
76A
