Details

  • •

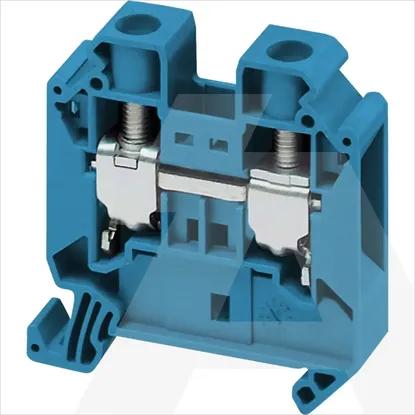

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Mounting methodDIN rail (top hat rail) 35 mm
Width12.2mm
Height55mm
Depth55.5mm
Operating temperature-40 - 130°C
Closing plate requiredYes
Type of electrical connection 2Screw connection
Type of electrical connection 1Screw connection
Number of clamp positions per level2
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 16mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 16mm²
Connectable conductor cross section multi-wired1.5 - 25mm²
Internally connected stagesNo
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Inflammability class of insulation material according to with UL94V0
ColourBlue
Rated voltage1000V
Connectable conductor cross section solid-core1.5 - 25mm²
Rated current In76A
