Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
ColourOrange
Width5.2mm
Depth47.7mm
Height47.5mm
Rated voltage1000V
Operating temperature-40 - 130°C
Type of electrical connection 2Screw connection
Closing plate requiredYes
Type of electrical connection 1Screw connection
Inflammability class of insulation material according to with UL94V0
Number of clamp positions per level2
Number of levels1
Rated current In24A
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Internally connected stagesNo
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Connectable conductor cross section solid-core0.14 - 4mm²
Connectable conductor cross section multi-wired0.14 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

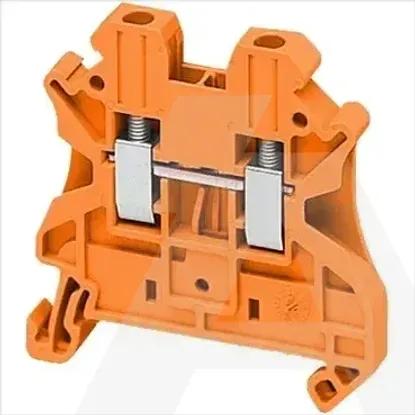

NSYTRV22AR | Stez. Vijcana 2,5mm2 1P 1x1 Naranca
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Orange
Width
5.2mm
Depth
47.7mm
Height
47.5mm
Rated voltage
1000V
Operating temperature
-40 .. 130°C
Type of electrical connection 2
Screw connection
Closing plate required
Type of electrical connection 1
Screw connection
Inflammability class of insulation material according to with UL94
V0
Number of clamp positions per level
2
Number of levels
1
Rated current In
24A
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Internally connected stages
Explosion-tested version 'Ex e'
Material insulation body
Thermoplastic
Connectable conductor cross section solid-core
0.14 .. 4mm²
Connectable conductor cross section multi-wired
0.14 .. 4mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
