Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Operating temperature-40 - 130°C
Width5.2mm
Rated voltage1000V
Depth47.7mm
Inflammability class of insulation material according to with UL94V0
Height47.5mm
ColourRed
Number of levels1
Number of clamp positions per level2
Closing plate requiredYes
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Type of electrical connection 2Screw connection
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Type of electrical connection 1Screw connection
Connectable conductor cross section multi-wired0.14 - 4mm²
Connectable conductor cross section solid-core0.14 - 4mm²
Internally connected stagesNo
Rated current In24A
Explosion-tested version 'Ex e'Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

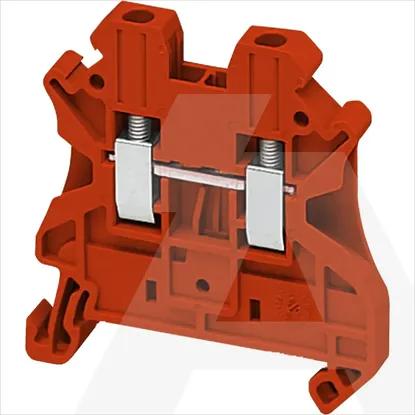

NSYTRV22RD | Stez. Vijcana 2,5mm2 1P 1x1 Crvena
