Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Closing plate requiredYes
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 1Screw connection
Operating temperature-40 - 130°C
Explosion-tested version 'Ex e'Yes
Number of levels1
Material insulation bodyThermoplastic
Type of electrical connection 2Screw connection
Height47.5mm
Width5.2mm
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Inflammability class of insulation material according to with UL94V0
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Connectable conductor cross section multi-wired0.14 - 4mm²
Depth47.7mm
ColourWhite
Rated voltage1000V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

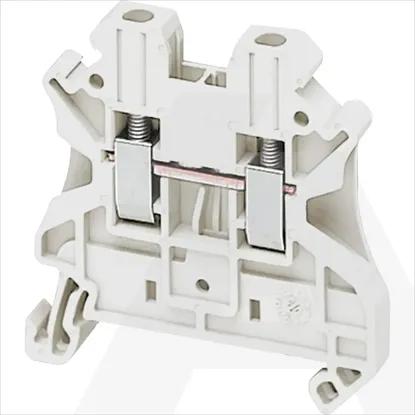

NSYTRV22WH | Stez. Vijcana 2,5mm2 1P 1x1 Bijela
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Closing plate required
Mounting method
DIN rail (top hat rail) 35 mm
Type of electrical connection 1
Screw connection
Operating temperature
-40 .. 130°C
Explosion-tested version 'Ex e'
Number of levels
1
Material insulation body
Thermoplastic
Type of electrical connection 2
Screw connection
Height
47.5mm
Width
5.2mm
Number of clamp positions per level
2
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Inflammability class of insulation material according to with UL94
V0
Internally connected stages
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
Connectable conductor cross section multi-wired
0.14 .. 4mm²
Depth
47.7mm
Colour
White
Rated voltage
1000V
Connectable conductor cross section solid-core
0.14 .. 4mm²
Rated current In
24A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
