Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Height65mm
ColourGrey
Rated voltage500V
Mounting methodDIN rail (top hat rail) 35 mm
Width5.2mm
Depth69.9mm
Number of levels2
Connectable conductor cross section solid-core0.14 - 4mm²
Closing plate requiredYes
Internally connected stagesNo
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'Yes
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Type of electrical connection 2Screw connection
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Type of electrical connection 1Screw connection
Rated current In24A
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.14 - 4mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

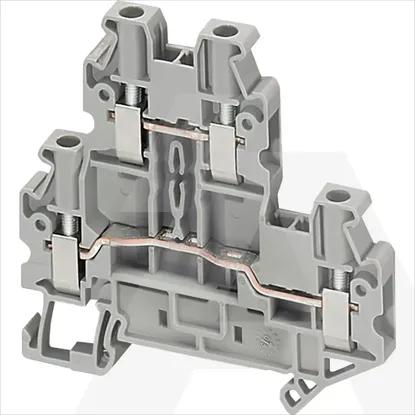

NSYTRV24D | Stez. Vijcana 2,5mm2 2P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Height
65mm
Colour
Grey
Rated voltage
500V
Mounting method
DIN rail (top hat rail) 35 mm
Width
5.2mm
Depth
69.9mm
Number of levels
2
Connectable conductor cross section solid-core
0.14 .. 4mm²
Closing plate required
Internally connected stages
Operating temperature
-40 .. 130°C
Inflammability class of insulation material according to with UL94
V0
Explosion-tested version 'Ex e'
Number of clamp positions per level
2
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Type of electrical connection 2
Screw connection
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
Type of electrical connection 1
Screw connection
Rated current In
24A
Material insulation body
Thermoplastic
Connectable conductor cross section multi-wired
0.14 .. 4mm²
