Details

  • •

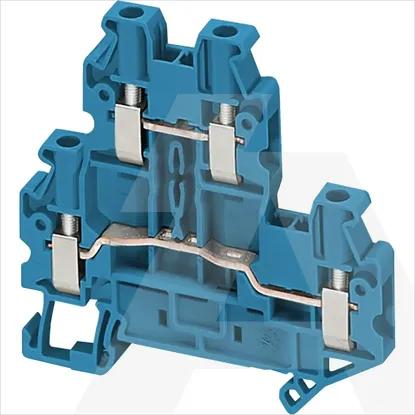

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Depth69.9mm
Operating temperature-40 - 130°C
Explosion-tested version 'Ex e'Yes
Height65mm
Width5.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Material insulation bodyThermoplastic
Internally connected stagesNo
Connectable conductor cross section multi-wired0.14 - 4mm²
Type of electrical connection 1Screw connection
Number of levels2
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Type of electrical connection 2Screw connection
Closing plate requiredYes
Number of clamp positions per level2
ColourBlue
Rated voltage500V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
