Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
ColourGrey
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Number of levels3
Type of electrical connection 1Screw connection
Depth90mm
Height77.5mm
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Width5.2mm
Rated voltage500V
Internally connected stagesNo
Type of electrical connection 2Screw connection
Operating temperature-40 - 130°C
Rated current In20A
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 2.5mm²
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.14 - 4mm²
Connectable conductor cross section solid-core0.14 - 4mm²
Explosion-tested version 'Ex e'No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

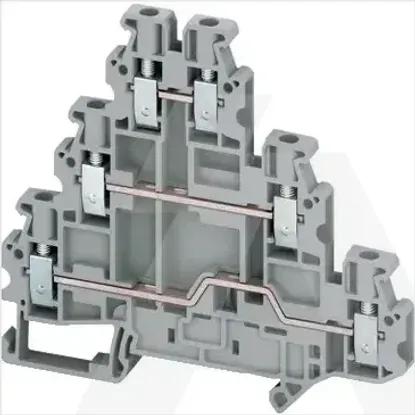

NSYTRV26T | Stez. Vijcana 2,5mm2 3P 1x1 Siva
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Colour
Grey
Mounting method
DIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Number of levels
3
Type of electrical connection 1
Screw connection
Depth
90mm
Height
77.5mm
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 4mm²
Width
5.2mm
Rated voltage
500V
Internally connected stages
Type of electrical connection 2
Screw connection
Operating temperature
-40 .. 130°C
Rated current In
20A
Number of clamp positions per level
2
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 2.5mm²
Material insulation body
Thermoplastic
Connectable conductor cross section multi-wired
0.14 .. 4mm²
Connectable conductor cross section solid-core
0.14 .. 4mm²
Explosion-tested version 'Ex e'
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
