Details

  • •

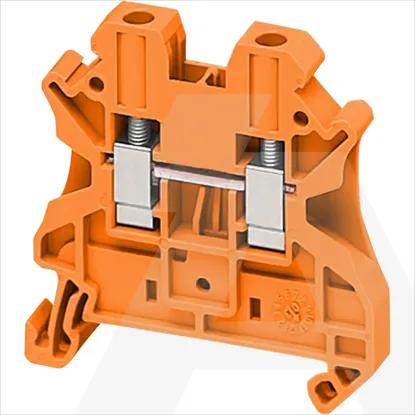

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Length47.7mm
Type of electrical connection 1Screw connection
Width/grid dimension6.2mm
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 130°C
Mounting methodDIN rail (top hat rail) 35 mm
Height at lowest possible mounting height47.5mm
Type of electrical connection 2Screw connection
Internally connected stagesNo
Number of clamp positions per level2
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired0.14 - 6mm²
Explosion-tested version 'Ex e'Yes
Connection positionSideways
ColourOrange
Rated voltage1000V
Connectable conductor cross section solid-core0.14 - 6mm²
Rated current In32A
