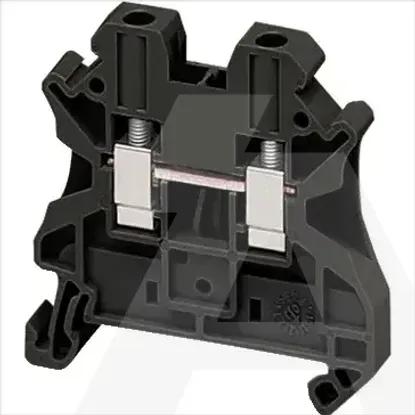

Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Closing plate requiredYes
ColourBlack
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Rated voltage1000V
Width/grid dimension6.2mm
Type of electrical connection 1Screw connection
Mounting methodDIN rail (top hat rail) 35 mm
Height at lowest possible mounting height47.5mm
Length47.7mm
Number of clamp positions per level2
Number of levels1
Explosion-tested version 'Ex e'Yes
Rated current In32A
Connectable conductor cross section solid-core0.14 - 6mm²
Material insulation bodyThermoplastic
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Type of electrical connection 2Screw connection
Connection positionSideways
Connectable conductor cross section multi-wired0.14 - 6mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NSYTRV42BK | Stez. Vijcana 4mm2 1P 1x1 Crna
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Feed-through terminal block
- 50 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Closing plate required
Colour
Black
Operating temperature
-40 .. 130°C
Inflammability class of insulation material according to with UL94
V0
Rated voltage
1000V
Width/grid dimension
6.2mm
Type of electrical connection 1
Screw connection
Mounting method
DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height
47.5mm
Length
47.7mm
Number of clamp positions per level
2
Number of levels
1
Explosion-tested version 'Ex e'
Rated current In
32A
Connectable conductor cross section solid-core
0.14 .. 6mm²
Material insulation body
Thermoplastic
Internally connected stages
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 6mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.2 .. 4mm²
Type of electrical connection 2
Screw connection
Connection position
Sideways
Connectable conductor cross section multi-wired
0.14 .. 6mm²
