Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Width6.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Height47.5mm
ColourBlue
Material insulation bodyThermoplastic
Depth47.7mm
Connectable conductor cross section multi-wired0.14 - 6mm²
Type of electrical connection 1Screw connection
Rated current In32A
Rated voltage1000V
Number of levels1
Type of electrical connection 2Screw connection
Internally connected stagesNo
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Explosion-tested version 'Ex e'Yes
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Closing plate requiredYes
Connectable conductor cross section solid-core0.14 - 6mm²
Number of clamp positions per level2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

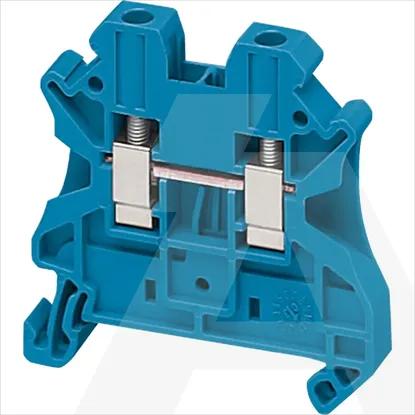

NSYTRV42BL | Stez. Vijcana 4mm2 1P 1x1 Plava
