Details

  • •Terminal blocks
  • •Feed-through terminal block
  • •50 KOM
  • •SCHNEIDER

Technical specifications

Inflammability class of insulation material according to with UL94V0
Type of electrical connection 2Screw connection
Height at lowest possible mounting height47.5mm
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Operating temperature-40 - 130°C
Material insulation bodyThermoplastic
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Internally connected stagesNo
Width/grid dimension6.2mm
Length47.7mm
Closing plate requiredYes
Connectable conductor cross section multi-wired0.14 - 6mm²
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 1Screw connection
Connection positionSideways
Explosion-tested version 'Ex e'Yes
ColourRed
Rated voltage1000V
Connectable conductor cross section solid-core0.14 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NSYTRV42RD | Stez. Vijcana 4mm2 1P 1x1 Crvena

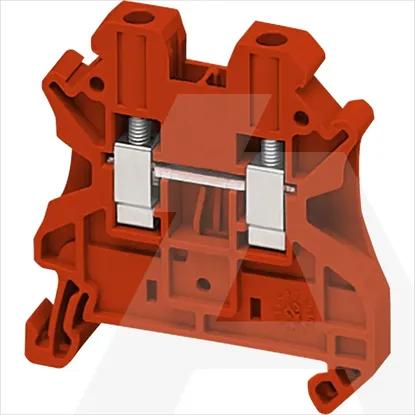

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Terminal blocks
  • Feed-through terminal block
  • 50 KOM
  • SCHNEIDER

Technical specifications

Inflammability class of insulation material according to with UL94

V0

Type of electrical connection 2

Screw connection

Height at lowest possible mounting height

47.5mm

Number of levels

1

Connectable conductor cross section fine-strand without cable end sleeve

0.14 .. 6mm²

Operating temperature

-40 .. 130°C

Material insulation body

Thermoplastic

Number of clamp positions per level

2

Connectable conductor cross section fine-strand with cable end sleeve

0.2 .. 4mm²

Internally connected stages

Width/grid dimension

6.2mm

Length

47.7mm

Closing plate required

Connectable conductor cross section multi-wired

0.14 .. 6mm²

Mounting method

DIN rail (top hat rail) 35 mm

Type of electrical connection 1

Screw connection

Connection position

Sideways

Explosion-tested version 'Ex e'

Colour

Red

Rated voltage

1000V

Connectable conductor cross section solid-core

0.14 .. 6mm²

Rated current In

32A
