Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Type of electrical connection 1Screw connection
Operating temperature-40 - 130°C
ColourWhite
Rated voltage1000V
Mounting methodDIN rail (top hat rail) 35 mm
Width/grid dimension6.2mm
Number of clamp positions per level2
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Material insulation bodyThermoplastic
Internally connected stagesNo
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Type of electrical connection 2Screw connection
Connection positionSideways
Rated current In32A
Number of levels1
Connectable conductor cross section multi-wired0.14 - 6mm²
Connectable conductor cross section solid-core0.14 - 6mm²
Height at lowest possible mounting height47.5mm
Explosion-tested version 'Ex e'Yes
Length47.7mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

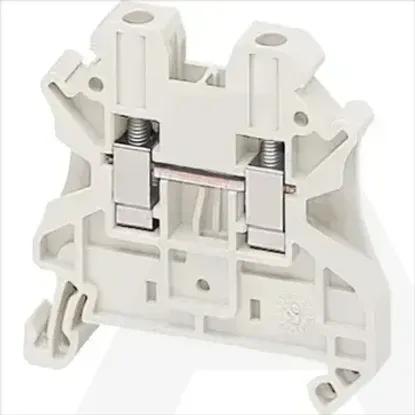

NSYTRV42WH | Stez. Vijcana 4mm2 1P 1x1 Bijela
